Description

MARK 7 APEX 10/EVOLUTION AUTODRIVE

NOTE: NO SALES OF MARK 7 ITEMS
OUTSIDE OF THE USA.

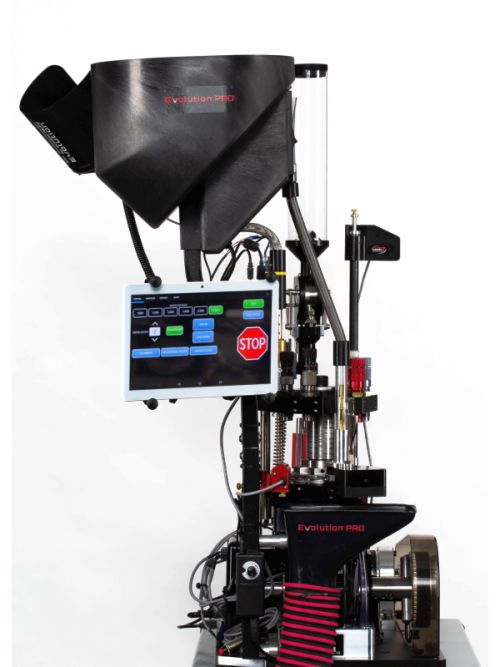

The Mark 7 Apex 10/Evolution is by far the ultimate in manual progressive reloading presses. It is the core of the commercial grade Mark 7 Revolution reloading press. The Evolution is fully up-gradable to the automated Revolution press with the addition of a Mark 7 Autodrive system.

Mark 7 Autodrives are the top choice for when you choose to automate your MARK 7 EVOLUTION hand operated reloading press. The combination of the patented digital sensor technology, torque sensing motor and jam sense technology ensures a safe and trouble free loading experience.

The Autodrive System comes complete with the large tablet display (Evolution Press Is Not Included).

The drive system ships complete, ready to be bolted to the base of your Evolution, to automate it and allows you reloading speeds of up to 2,500 rounds per hour.

To install the Evolution Autodrive System simply remove the handle from your Evolution, bolt it down to the study aluminum base of the Autodrive system, attach the drive sprocket and belt and that’s it! You can attach your handle on the left side to run the machine manually by placing the motor in Neutral.

If top of the line technology, innovative features and high quality is what you are looking for, Mark 7 is the only choice.

Features at a Glance:

• Digital clutch – adjustable on-the-fly
• Completely compatible with Mr Bulletfeeder and GSI bulletfeeders
• Digital jog and immediate stop
• Microprocessor controlled
• Includes computer tablet – no control boxes!
• Features monitored by computer
• Downloadable software upgrades
• Supports a variety of accessories
• User-configurable Dwell time
• Pre-assembled and shipped ready to you
• CNC grade planetary gearbox
• Maintenance-free timing belt drive
• Full warranty
• User selectable speeds of up-to 3,500 rounds/hour
• 1.5 HP high torque motor
• This unit operates at 110 volts.
• Completely compatible with the leading bullet feeders on the market
• Machine dimensions are: 41″ tall (104 cm) x 16″ wide (40.6 cm) x 20″ deep (50.8 cm)

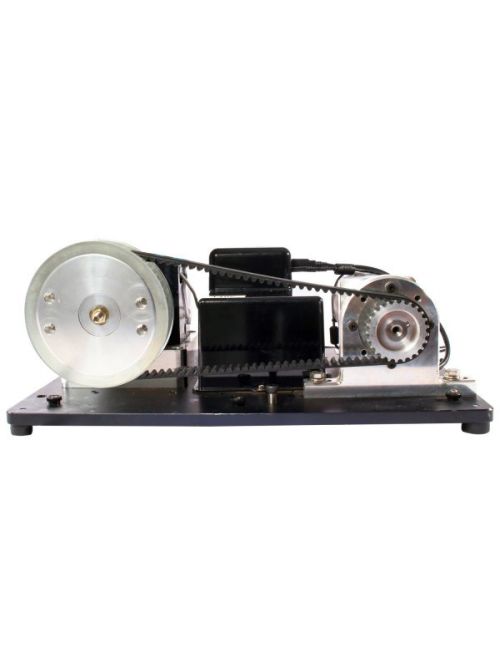

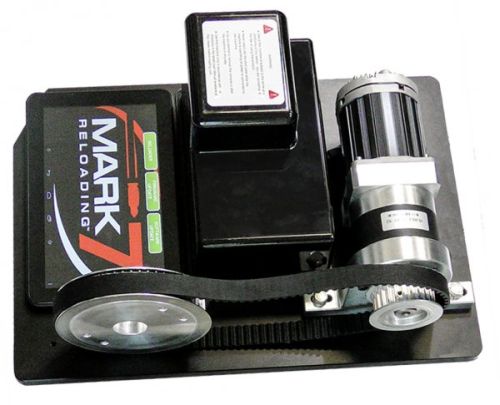

The auto drive system comes pre-assembled on a 1/2″ aluminum billet base plate ready to simply bolt on your press with the included hardware. Package includes the high horsepower motor, gearbox, motor mount and supplementary electronics. The 10″ android tablet comes pre-loaded with Mark 7 software and is user up-gradable FOR LIFE when a new version is released. Comes with a high quality tablet mount. Everything you need to turn your hand operated press into an automated ammo factory is included — typical installation time is ONLY 20-30 minutes!

CLICK HERE FOR EVOLUTION AUTODRIVE USERS MANUAL
