Description

XL750 Maintenance & Spare Parts Kit

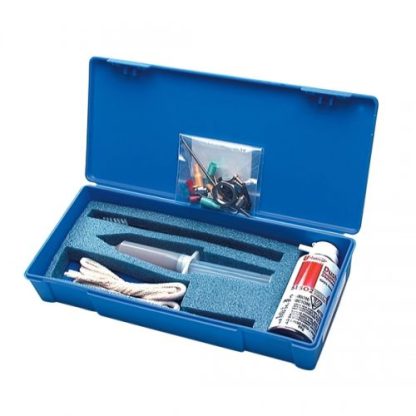

Your Dillon Precision reloader requires regular cleaning and maintenance to insure that it is operating at peak performance. The Machine Maintenance Kit includes everything you need to keep your Dillon reloader cleaned, lubricated, and up to factory specifications. The kit comes packaged in a convenient Dillon utility box and includes the following supplies:

• XL750 Series Spare Parts Kit
• Compressed Air
• Pipe Cleaners
• Lubricating Grease Syringe
• Nylon Brush

Contents of Spare Parts Kit:

1 750 Ring Indexer
1 750 Index Return Spring
1 Case Insert Slide Spring Cap
1 Slide Spring Retaining Pin
1 750 Index Pawl, 1 750 Tool Head Pin
1 Failsafe Return Spring
1 Failsafe Shoulder Washer
1 Index Arm Bowed Washer
1 750 Index Ball
1 750 Brass Tip Set Screw
1 750 Pawl Spring
1 Case Insert Slide Spring
1 750 Ejector Wire
1 750 Index Ball Spring
1 750 Indexing Arm Spring
1 750 Station Two Locator Tab
1 650 Station Two Locator Bushing
1 650 Station Two Locator Spring
1 Tinnerman Insert
1 Casefeed Arm Return Spring
2 Pistol Decapping Pins
2 Pickup Tube (Large Green Tips)
2 Pickup Tube (Small Yellow Tips)
2 pickup tube retaining Clips
4 Locator Pins (one each #s 1,2,3,4)
1 dispensing tip (Large)
1 dispensing tip (Small)
1 spacer bar retaining plug
1 bellcrank Cube
2 Large Primer Magazine tips (red)
2 Small Primer magazine Tips (blue)
1 750 large primer cup
1 750 Small Primer cup
1 750 large primer seating punch
1 750 small primer seating punch
1 750 primer cup spring
1 550 primer slide return Spring
2 #10 washers
